Engine
| Name | RTV-X1130 |
|---|---|
| Engine Model | Kubota D1105 |
| Fuel Type | Diesel |
| Cylinders | 3 |
| Engine Gross | 24.8 hp |
| Displacement | 1,123 cc |
| Fuel Tank Capacity | 30 l |
| Rated Speed | 3,000 rpm |
Dimensions
| Name | RTV-X1130 |
|---|---|
| Length | 3,925 mm |
| Width | 1,605 mm |
| Height | 2,025 mm |
| Tread Front | 1,280 mm |
| Tread Rear | 1,280 mm |
| Wheelbase | 2,495 mm |
| Turning Radius | 5.2 m |
| Ground Clearance Front | 293 mm |
| Ground Clearance Rear | 257 mm |
| Weight | 1,060 kg |
| Towing Capacity | 590 kg |
| Payload Capacity | 754 kg |

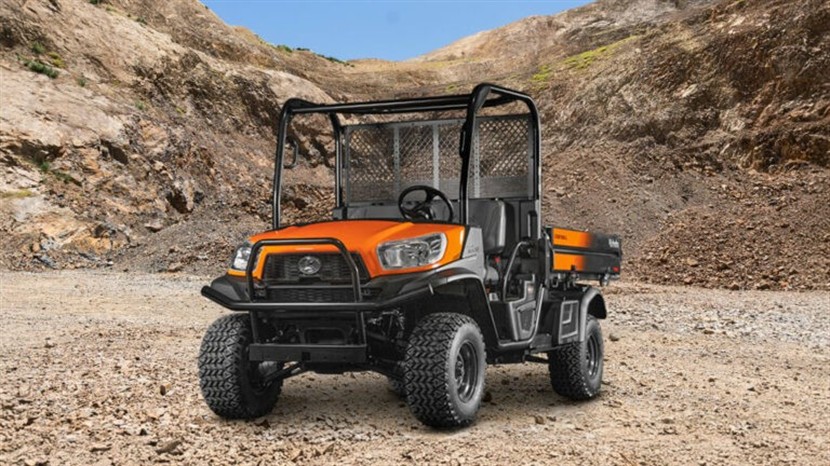

This long bed model holds true to the legacy of the RTV-X Series; powered by Kubota's D1105 Diesel Engine, paired with VHT-X transmission, hydraulic dump box and power steering; features that have made the X-Series so popular.
With it comes a suite of new features like Pro-Konvert functionality and new cargo box accessories, that represent capability re-imagined. No matter what job you have to get done, or how you like to spend your free-time, the RTV-X1130 is built to outwork!
