Engine
| Name | M7040DH | M7040DHC |
|---|---|---|
| Fuel Type | Diesel | Diesel |
| Cylinders | 4 | 4 |
| Engine Model | Kubota V3307 | Kubota V3307 |
| Engine Gross | 68 hp | 68 hp |
| PTO | 62 hp | 62 hp |
| Displacement | 3,331 cc | 3,331 cc |
| Fuel Tank Capacity | 70 l | 90 l |
| rated Speed | 2,600 rpm | 2,600 rpm |
Dimensions
| Name | M7040DH | M7040DHC |
|---|---|---|
| Length | 3,445 mm | 3,445 mm |
| Width | 1,860 mm | 1,860 mm |
| Height | 2,470 mm | 2,545 mm |
| Wheelbase | 2,050 mm | 2,125 mm |
| Ground Clearance | 415 mm | 415 mm |
| Turning Radius | 2.6 m | 3.6 m |
| Tractor Weight | 2,180 kg | 2,480 kg |

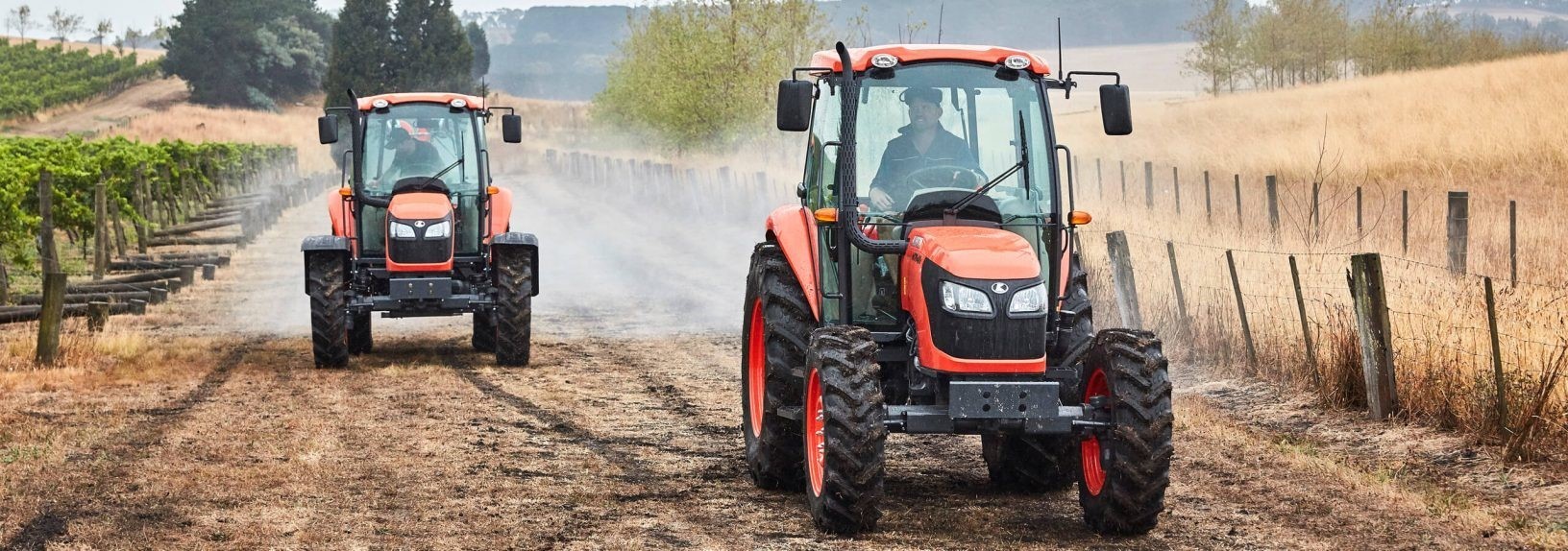

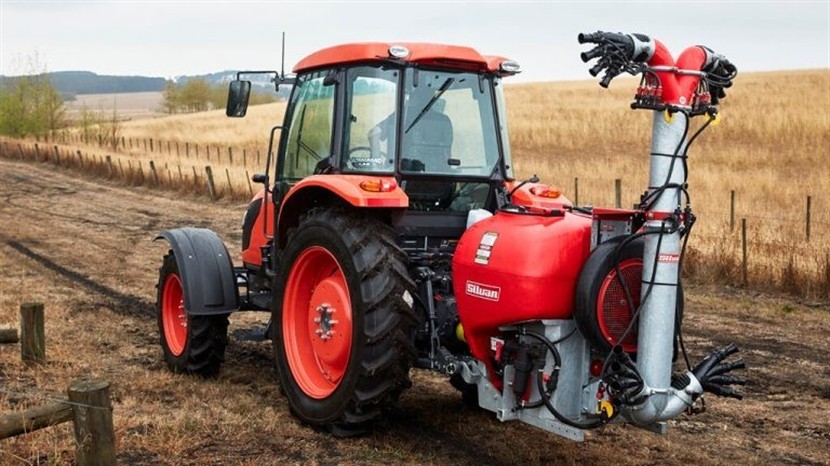

Kubota’s M7040 utility tractors offer powerful performance with a 68HP, 4-cylinder turbo charged, E-CDIS engine. Designed for heavy duty work and equipped with hydraulic shuttle, Creep Speed and Auto-hitch for a more productive and practical operation. Available in ROPS or cabin models. The cabin models features rounded glass for increased CAB space and greater visibility.
Available with a variety of attachments. When operating a tractor, space comes at a premium. The M-Series flat deck neatly repositions most of the operational levers, including main shift and range lever, auxiliary control lever, hand-throttle, position draft control lever and PTO clutch lever, to the right of the seat. This offers the operator more legroom and far more comfort.
