Mowers

Kubota

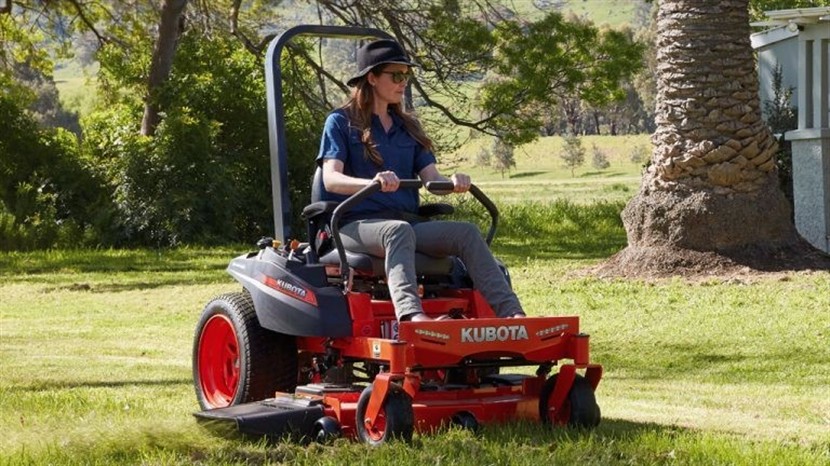

Z200 Series Zero-Turn Mower

Z200 Series Zero-Turn Mower

Specifications

Engine

Name Z232KW-42 Z242KH-48 Z242KW-48 Z252HK-54 Z252KW-54
Engine Type Air-cooled V-Twin Air-cooled V-Twin Air-cooled V-Twin Air-cooled V-Twin Air-cooled V-Twin
Fuel Type Petrol Petrol Pertrol Petrol Pertrol
Cylinders 2 2 2 2 2
Engine Model Kawasaki Kawasaki Kawasaki Kawasaki Kawasaki
Engine Gross 21.5 hp 22 hp 21.5 hp 25 hp 24 hp
Displacement 726 cc 725 cc 726 cc 747 cc 726 cc
Fuel Tank Capacity 13.6 l 16.3 l 16.3 l 16.3 l 16.3 l
Rated Speed 3,600 rpm 3,600 rpm 3,600 rpm 3,600 rpm 3,600 rpm

Dimension

Name Z232KW-42 Z242KH-48 Z242KW-48 Z252HK-54 Z252KW-54
Length 1,890 mm 2,006 mm 2,006 mm 2,006 mm 2,006 mm
Width 1,400 mm 1,552 mm 1,552 mm 1,710 mm 1,710 mm
Height (w/ ROPS Upright) 1,693 mm 1,855 mm 1,738 mm 1,855 mm 1,738 mm
Wheelbase 1,236 mm 1,195 mm 1,195 mm 1,195 mm 1,195 mm
Ground Clearance 104 mm 110 mm 110 mm 110 mm 110 mm
Tread Front 616 mm 826 mm 826 mm 826 mm 826 mm
Tread Rear 885 mm 964 mm 964 mm 964 mm 964 mm
Weight 292 kg 368 kg 383 kg 375 kg 390 kg

Gallery

Engineered especially for homeowners with exclusive, easy-to-use features and complete with a heavy-duty fabricated mower decks, this innovative mower range offers unmatched comfort with excellent stability, well-placed controls and a low centre of gravity.

Select from 5 model variations with 42″, 48″ or 54″ mower deck options.
