Working Weight
| Name | TNB-6M | TNB-6E | TNB-7J | TNB-110 | TNB-151LU2 |
|---|---|---|---|---|---|
| Working Weight - Top Mount Type | 350 kg | 465 kg | ✗ | ✗ | ✗ |
| Working Weight - Box Type | 440 kg | 585 kg | 950 kg | 1,240 kg | 1,800 kg |
Dimensions
| Name | TNB-6M | TNB-6E | TNB-7J | TNB-110 | TNB-151LU2 |
|---|---|---|---|---|---|
| Width | 350 mm | 380 mm | 510 mm | 490 mm | |
| Height | 1,595 mm | 1,697 mm | 1,878 mm | 2,139 mm | 1,230 mm |
| Tool Diameter | 75 mm | 95 mm | 105 mm | 115 mm | 135 mm |
| Tool Length | 710 mm | 800 mm | 1,050 mm | 930 mm | 1,230 mm |
| Min. Carrier Range | 5.5 ton | 6 ton | 8 ton | 14 ton | 18 ton |
| Max. Carrier Range | 8 ton | 11 ton | 14 ton | 20 ton | 25 ton |

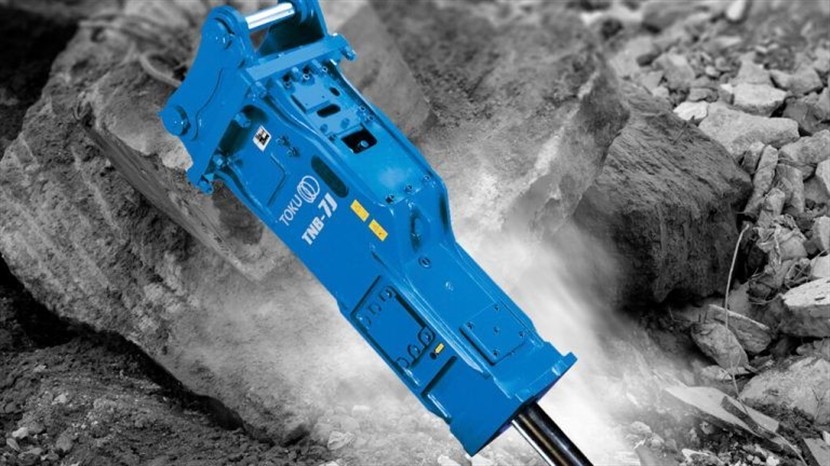

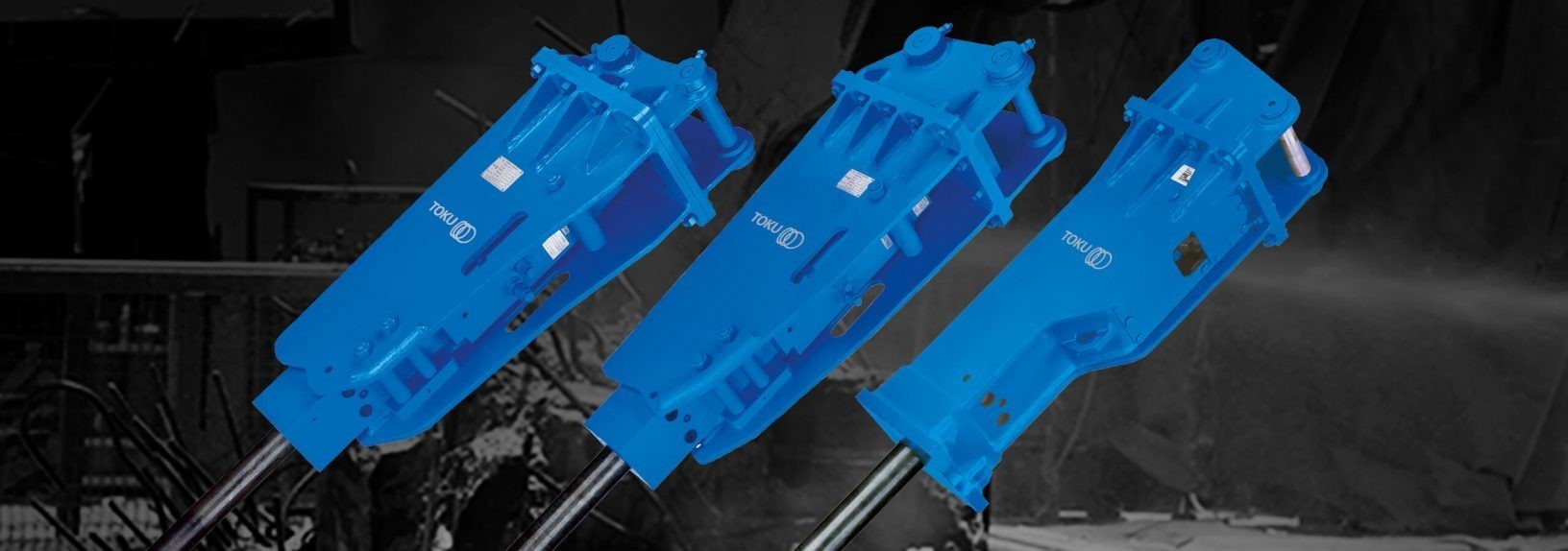

Ideal for a variety of applications ranging from tunneling, foundation work, road construction and open pit mining work, Toku’s medium hydraulic hammer range offers outstanding versatility and performance that you can rely on.
