Specifications
| Name | SRT62 | SRT76 |
|---|---|---|
| No. Rotor Flanges | 9 | 11 |
| No. Tines per Flange | 4 | 4 |
| Rotor Swing Diameter | 46.5 cm | 46.5 cm |
| No. Shanks | 5 | 6 |
| Side Shift Capabilities (to the right) | 15.2 cm | 15.2 cm |
| Depth Indicator | ✓ | ✓ |
| Min. Low Flow Motor Hydraulic Req. | 53 Lpm | ✗ |
| Max. Low Flow Motor Hydraulic Req. | 87 Lpm | ✗ |
| Min. High Flow Motor Hydraulic Req. | 87 Lpm | ✗ |
| Max. High Flow Motor Hydraulic Req. | 159 Lpm | ✗ |
| Min. Low Flow Motor Hydraulic Pressure | 19.3 mPa | ✗ |
| Max. Low Flow Motor Hydraulic Pressure | 31 mPa | ✗ |
| Min. High Flow Motor Hydraulic Pressure | 13.8 mPa | 15.9 mPa |
| Max. High Flow Motor Hydraulic Pressure | 31 mPa | 31 mPa |
| Min. Low Flow Motor RPM | 143 RPM | ✗ |
| Max. Low Flow Motor RPM | 245 RPM | ✗ |
| Min. High Flow Motor RPM | 133 RPM | 133 RPM |
| Max. High Flow Motor RPM | 244 RPM | 244 RPM |
| Motor Case Drain | Standard | Standard |
| Tine Construction | Bi-Directional Forged Hardened "C" Shaped | Bi-Directional Forged Hardened "C" Shaped |
| Direction of Travel | Bi-Directional | Bi-Directional |
| Skid Shoes | Replaceable | Replaceable |
| Shank Retainers | Spring Loaded Raining Clips 2 | Spring Loaded Raining Clips 2 |
| Shank Construction | 19 x 64 x 406mm Adjustable Hardened Steel | 19 x 64 x 406mm Adjustable Hardened Steel |
| Deck Plate Construction | 6 mm | 6 mm |
| End Plate Construction | 10 mm | 10 mm |
Dimensions
| Name | SRT62 | SRT76 |
|---|---|---|
| Tilling Width | 157 cm | 193 cm |
| Overall Width | 189 cm | 225 cm |
| Tilling Width | 157 cm | 193 cm |
| Min. Tilling Depth | 2 cm | 2 cm |
| Max. Tilling Depth | 14.2 cm | 14.2 cm |
| Weight | 356 kg | 399 kg |

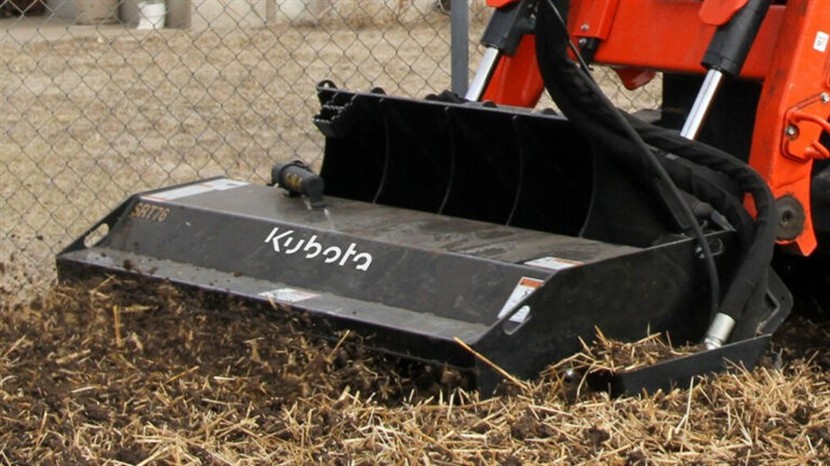

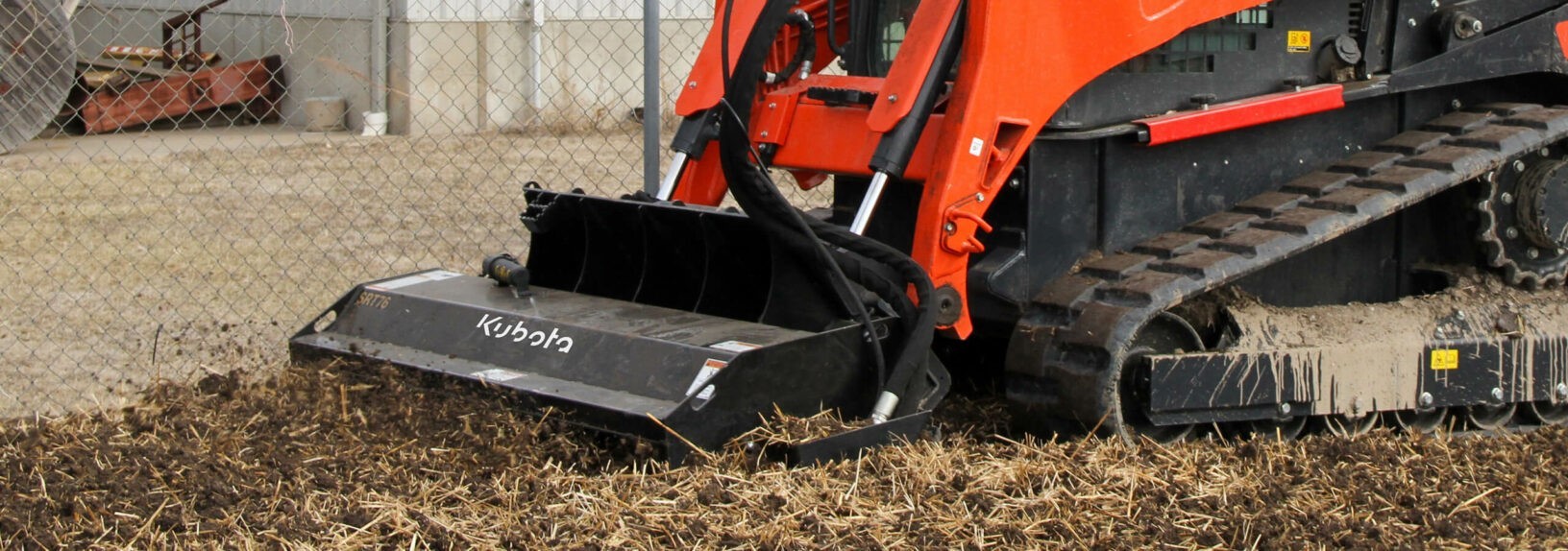

The SRT series is perfect for use with Kubota SVL and SSV loaders. With formed and reinforced rear deflectors, these machines are well suited for use in landscaping, nurseries, gardens, and light commercial applications. The SRT series features curl and depth indicators to achieve precise and adjustable tilling depth.
