Dimensions
| Name | HB74 | HB84 |
|---|---|---|
| Weight Base Unit w/ Brush | 568 kg | 621 kg |
| Weight – Gutter Broom | 46 kg | 46 kg |
| Weight – Dust Suppression | 88 kg | 93 kg |
| Weight – Dust Suppression w/ Gutter Broom | 89 kg | 95 kg |
| Width | 2.08 m | 2.34 m |
| Height | 1.17 m | 1.17 m |
Specifications
| Name | HB74 | HB84 |
|---|---|---|
| No. of Broom Wafers | 36 | 41 |
| Sweeping Width | 1.88 m | 2.13 m |
| Sweeping Width w/ Gutter Broom | 2.18 m | 2.44 m |
| Broom Diameter | 66cm | 66cm |
| Bucket Shell Thickness | 4.8 mm | 4.8 mm |
| Bolt-on Cutting Edge Thickness | 16 mm | 16 mm |
| Bolt-on Cutting Edge Width | 203 mm | 203 mm |
| Broom Hood Thickness | 2.6 mm | 2.6 mm |
| Optional Water Tank Capacity | 95 L | 95 L |

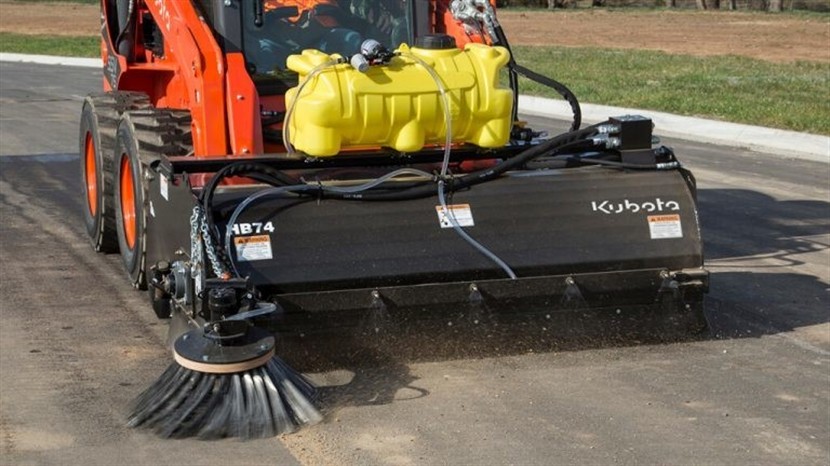

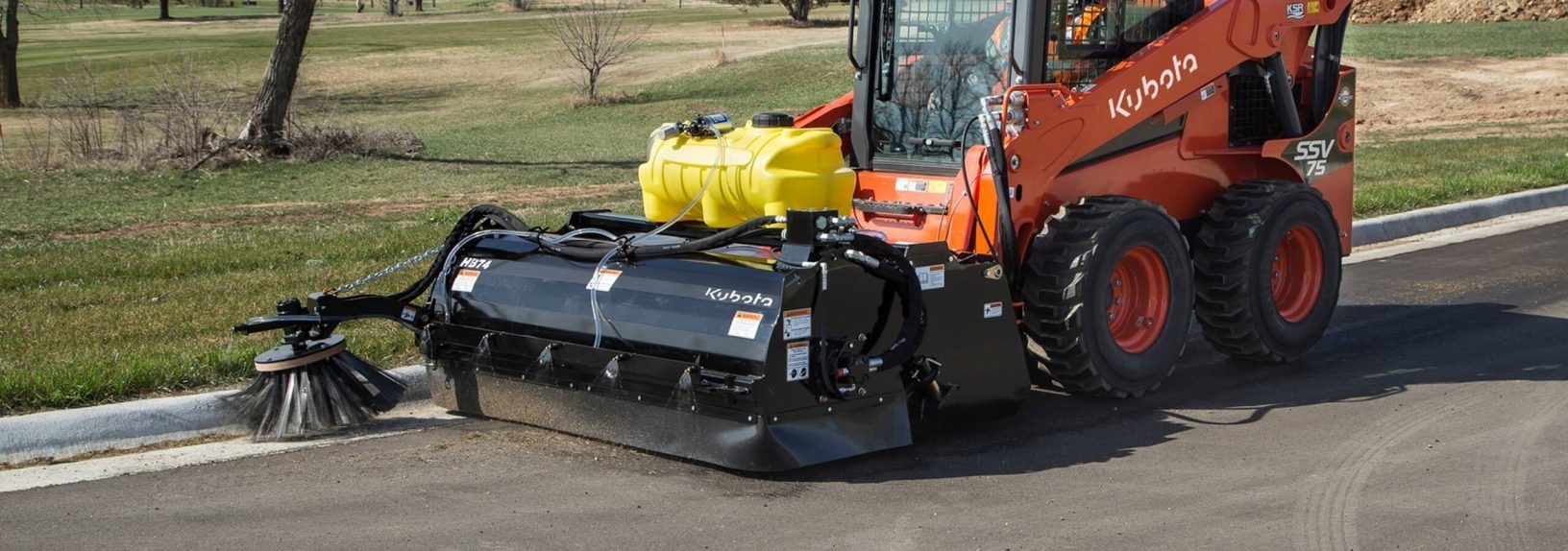

The Hopper Brooms are ideal for construction site cleanup, road maintenance, light snow removal on paved surfaces, and cart path maintenance. Options include poly, wire or blended poly brush with hydraulic or manual angle adjusters.
