| Boom | SB | MB | HYS |
| Tank, l (net) | 1200 | 1200 | 1200 |
| Pumps, type – l/min | 1203 - 99 | 1203 - 99 | 1203 - 99 |
| Booms, m | 6, 8, 10 | 12 | 12 |
| Section distribution (standard) | 3 section | 3 section | 3 section |
| Suspension | Leaf spring | Leaf spring | Leaf spring |
| Weight total (empty tank)*, kg | 750 | 750 | 750 |
| Total length*, m | 4.40 | 4.40 | 4.40 |
| Total height*, m | 2.60 | 2.60 | 03.00 |
| Width with boom in transport position*, m | 2.30 | 2.30 | 2.30 |
| Track width, m | 1.80 (fixed) | 1.80 (fixed) | 1.80 (fixed) |
| Length draw to axle, m | 4.40 | 4.40 | 4.40 |
| Ground clearance, m | 0.48 (12.4 × 24) | 0.48 (12.4 × 24) | 0.48 (12.4 × 24) |
| RinseTank, l | 120 | 120 | 120 |

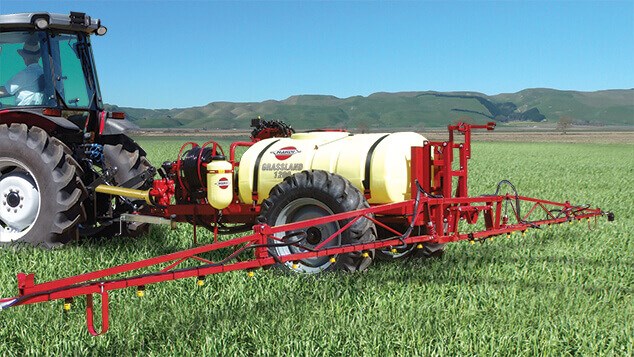

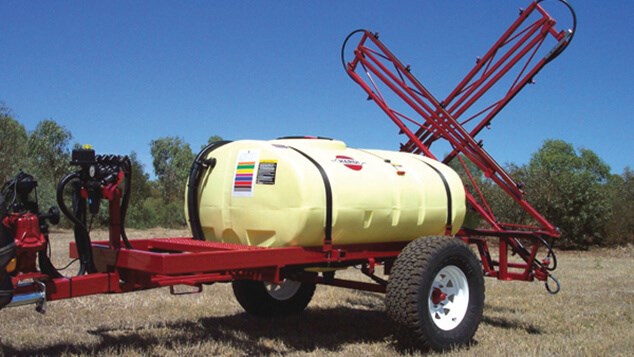

Grassland can be equipped with a range of small booms that make it a viable alternative to linkage sprayers. Choose from 6 m, 8, m or 10 m SB booms; the 12 m MB boom, or a hydraulic folding (including independent side folding) HYS boom with 12 m width. Both the MB and HYS booms include air bag suspension and an inertia trapeze mounting as standard, and hydraulic height control can be added as an option.

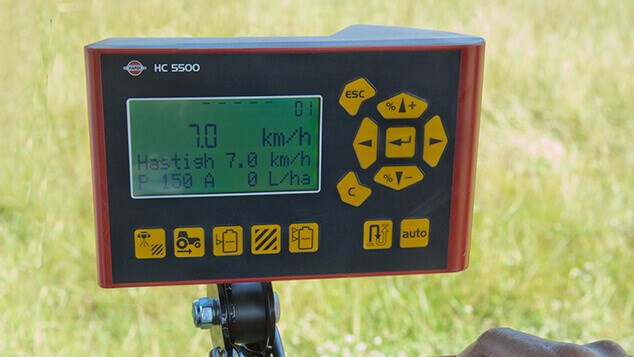

EVC electric valve control provides remote pressure regulation, plus nozzle on/off and section control when connected to a SprayBox 2 rate controller. The optional SprayBox 2 is an affordable way to manage the fluid pressure and section valves from the tractor seat. GRASSLAND can also be controlled from the cab using the robust HC 5500 controller. This spray computer maintains an accurate application rate regardless of forward speed, and the rate can be changed on the go with the touch of a button.
