| Tank, litres | 6500 | 8500 | 10000 |
| Pumps, type - l/min | 464 - 334 | 464 - 334 | 464 - 334 |
| Booms, m | FORCE 30, 32, 33, 36 | FORCE 30 - 36 | FORCE 30 - 36 |
| Booms, m | TERRA FORCE 36, 38, 40, 42 | TERRA FORCE 36 - 42 | TERRA FORCE 36 - 42 |
| RinseTank | 730 | 730 | 730 |
| Total height (TERRA FORCE), m | 3.65 | 3.65 | 3.65 |
| Total length (TERRA FORCE), m | 8.35 | 8.85 | 8.85 |
| Length draw to axle, m | 5.50 | 6.05 | 6.05 |
| Turning radius SafeTrack, m | 6.20 | 9.00 | 9.00 |
| Track width, m | 2.20 - 3.00 | 2.20 - 3.00 | 2.20 - 3.00 |
| Width (TERRA FORCE), m | 3.50 | 3.50 | 3.50 |
| Clearance, m | 0.795 | 0.795 | 0.795 |
| Weight on drawbar (empty), kg | 1565 | 1134 | 1145 |
| Weight on axle (empty), kg | 5534 | 6226 | 6255 |
| Weight total (empty), kg | 6899 | 7360 | 7400 |
| Weight total (empty tank), kg | 6899 | 7360 | 7400 |
| Suspension | Hydraulic | Hydraulic | Hydraulic |
| Suspended drawbar | - | Standard | Standard |
| Standard tyre | 520/85 R42 | 520/85 R42 | 710/70 R42 |
| Tyre options | 620/70 R42 | 620/70 R42 | 620/70 R42 |

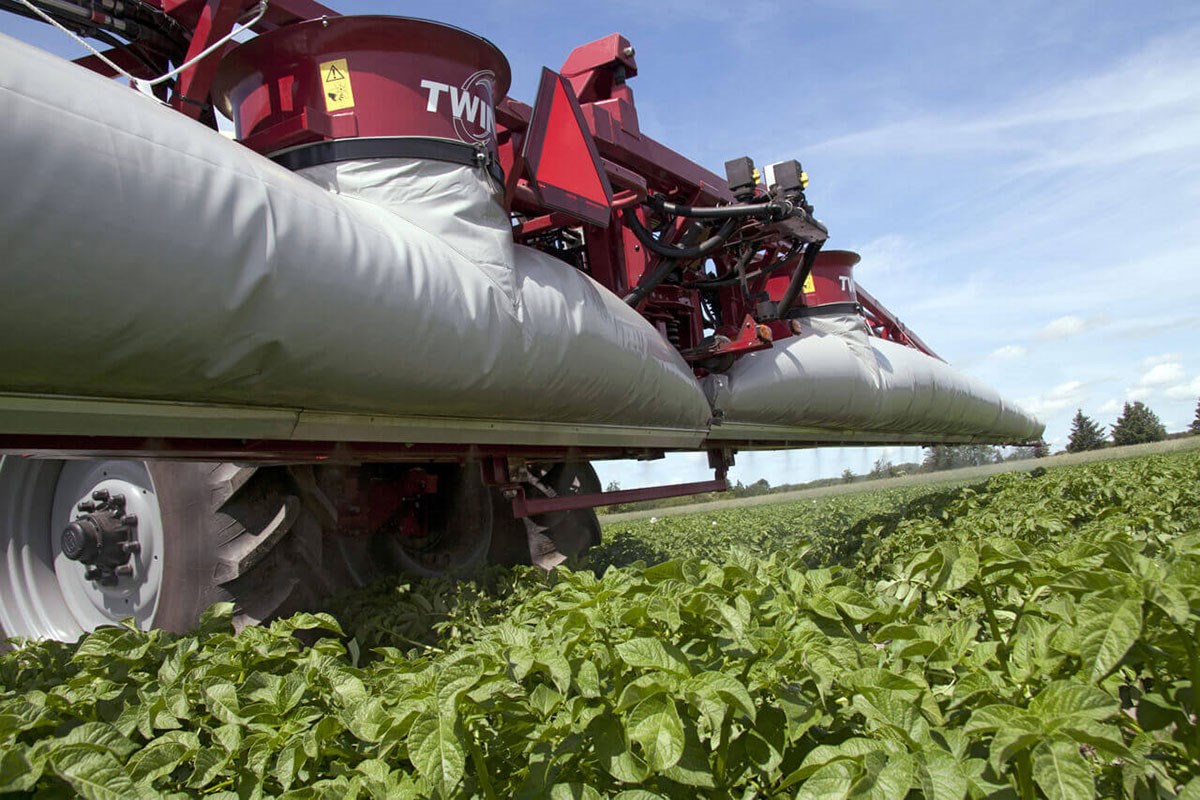

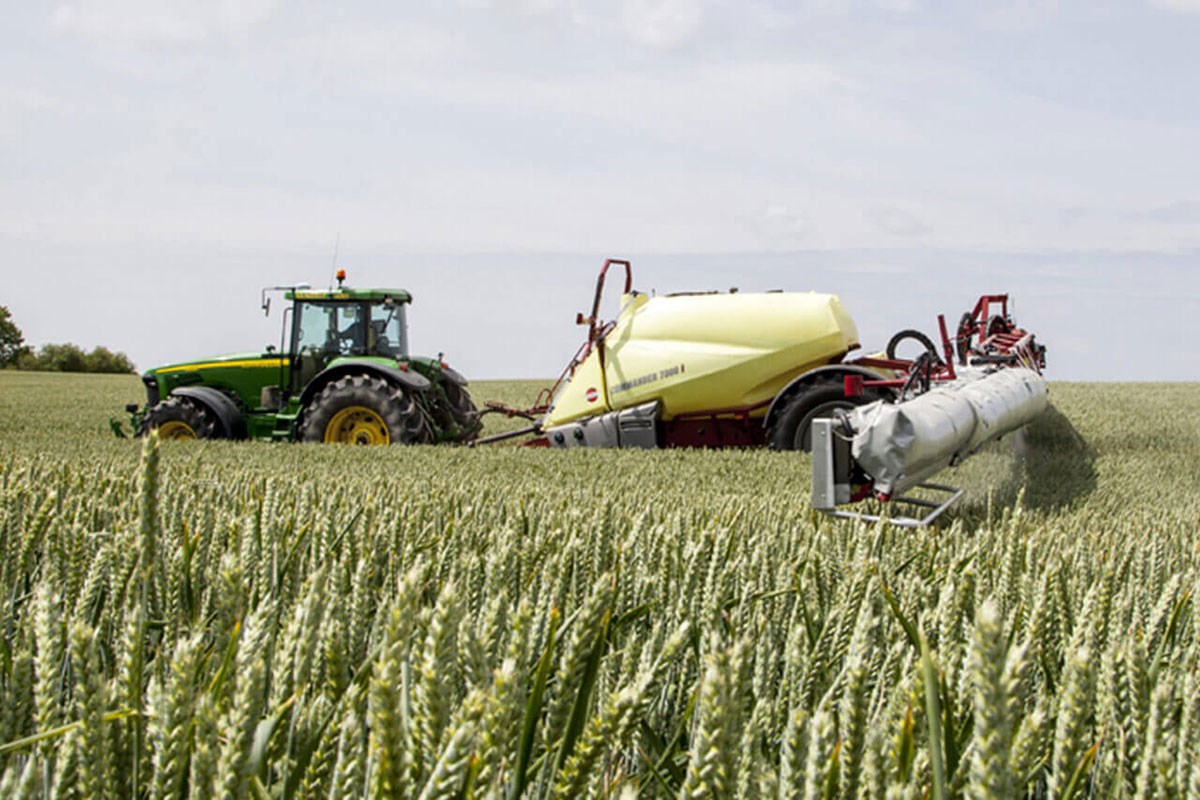

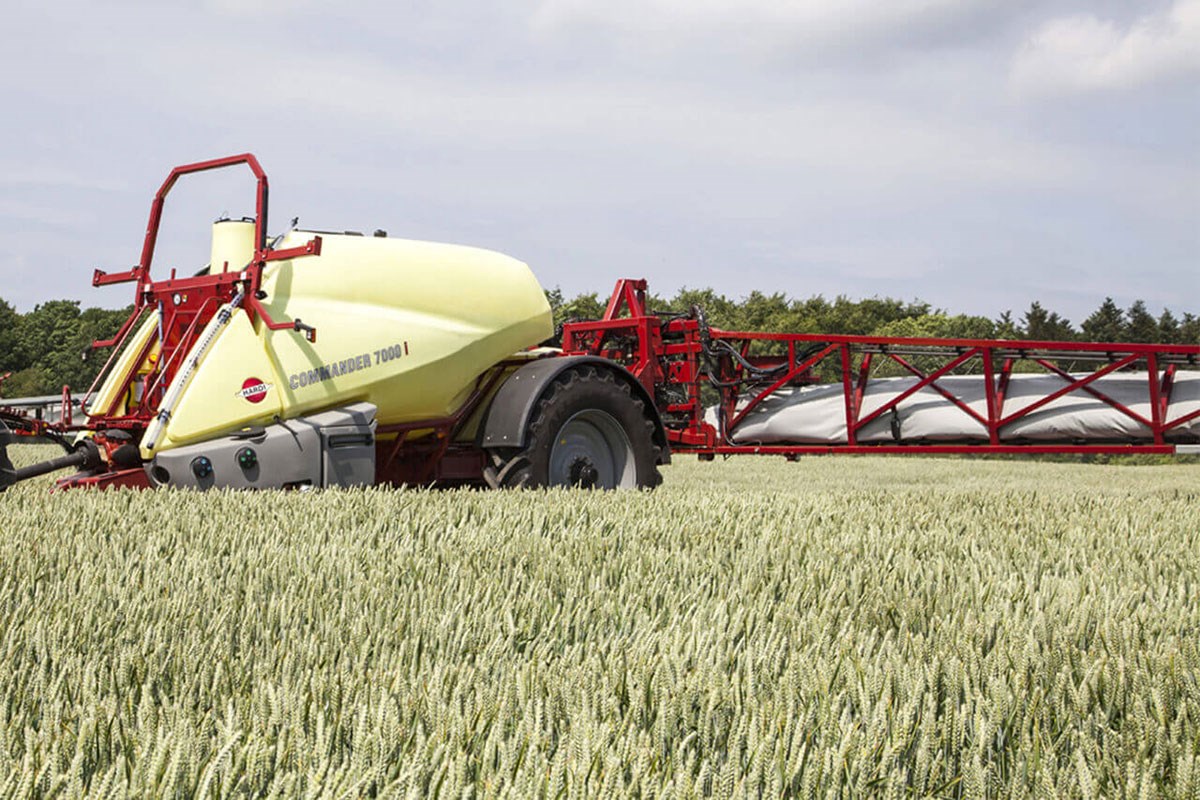

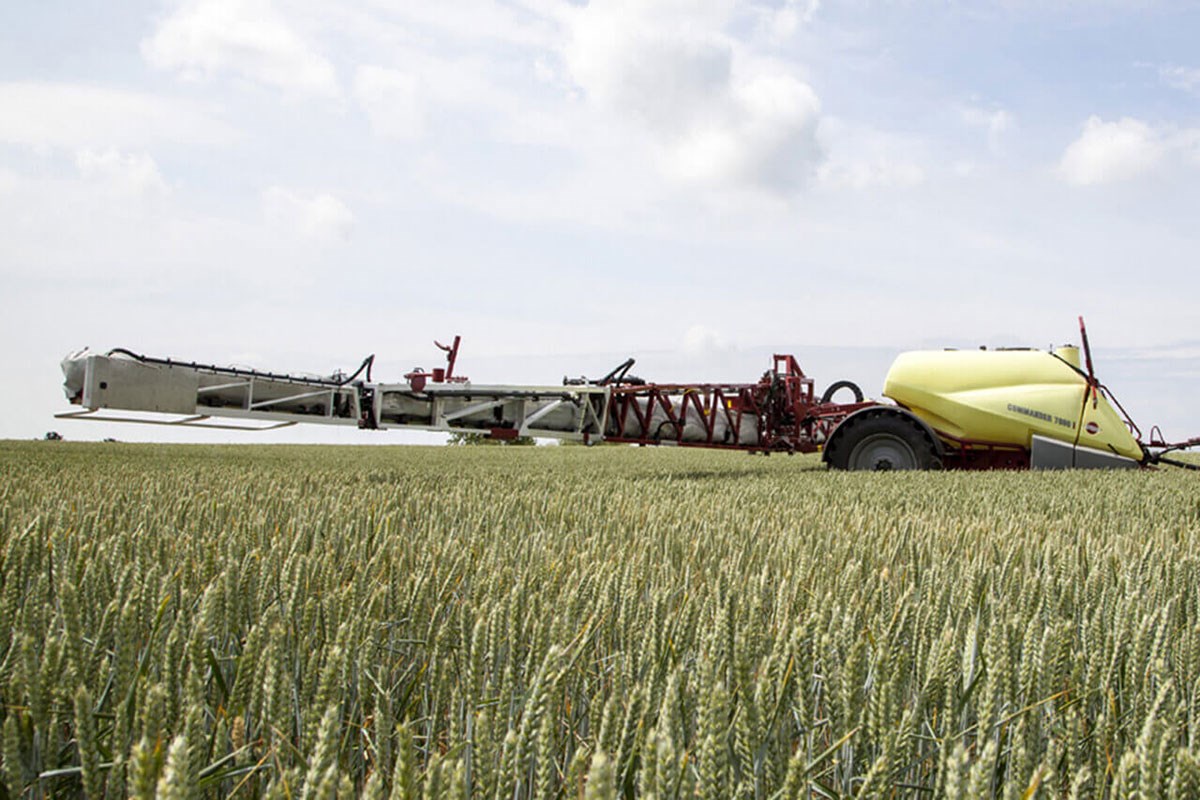

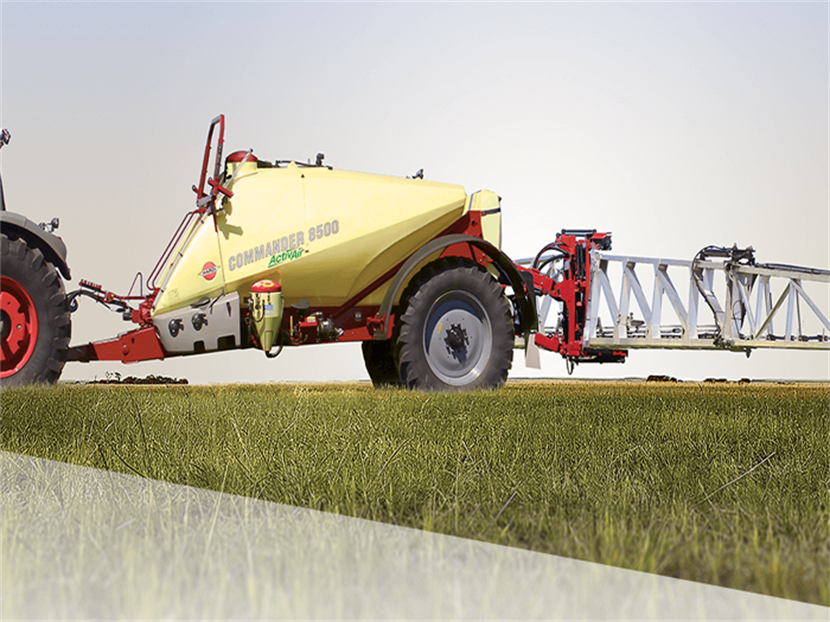

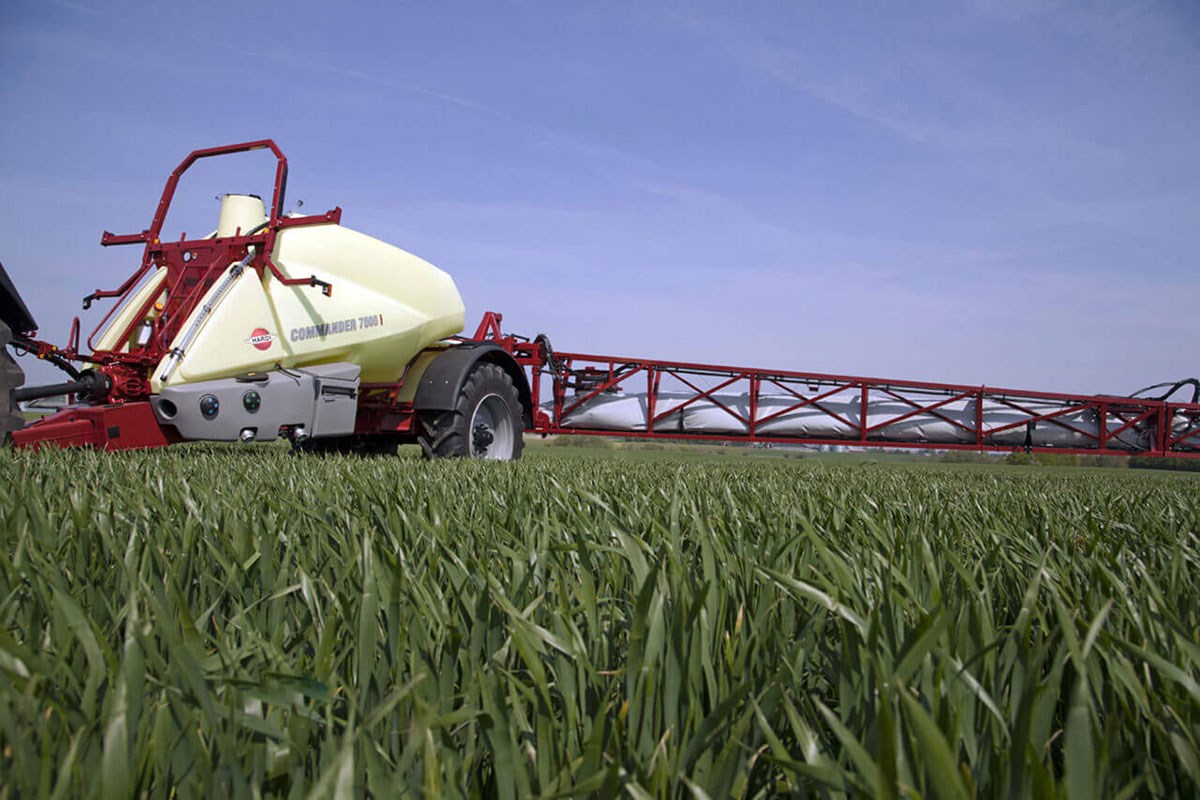

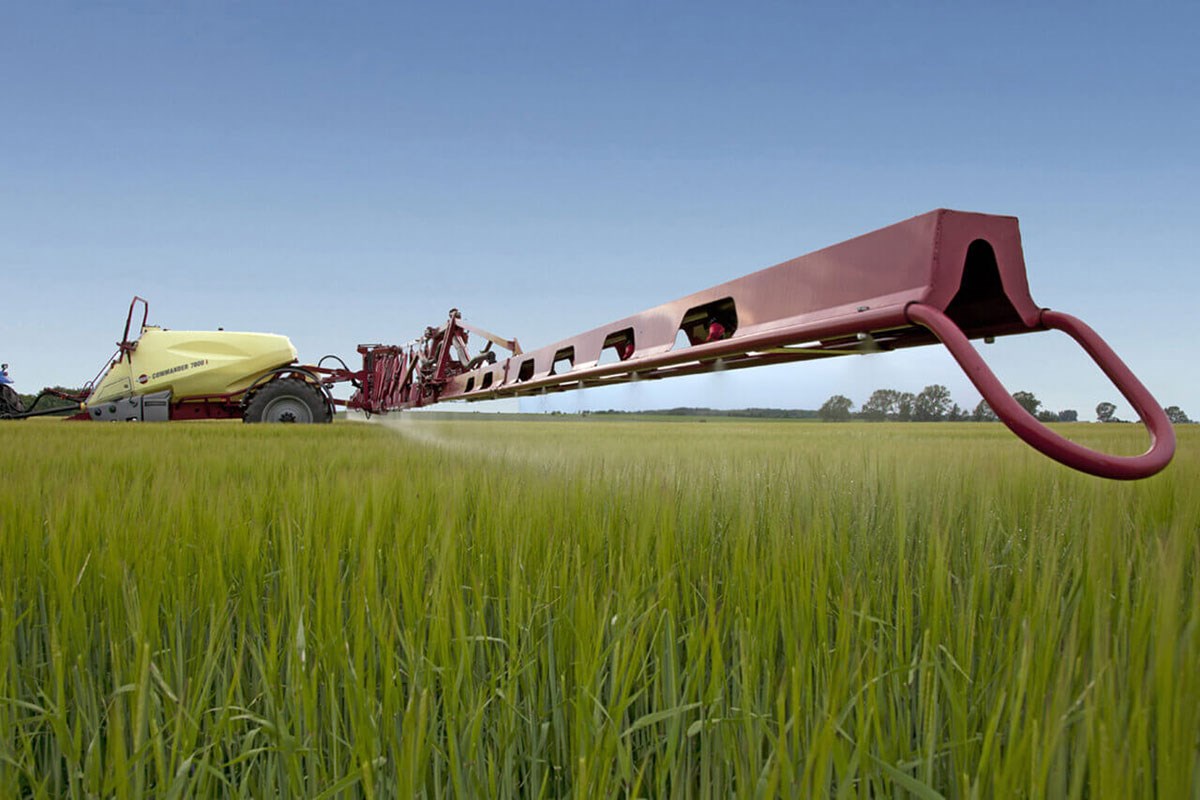

The COMMANDER range converts capacity into productivity with a choice of wide, high-performing HARDI booms. For width without weight, COMMANDER will mount HARDI PARAGON Aluminium booms from 36.5 m to 42.5 m and, and our largest 48.5 m boom on COMMANDER 8500 or 10000 models. Strong, rigid steel booms are available in widths from 30 m to 36 m (FORCE) and 36 m to 42 m TERRAFORCE. Or, for the ultimate in weather-defying drift control, COMMANDER is also compatible with HARDI's remarkable TWIN air spraying system.
COMMANDER has a simple, logical fluid system and a centralized WorkZone, making it very easy to set up, clean and maintain. The WorkZone is managed with just two taps and a SmartValve pressure selector, conveniently co-located with the filling point, filters, hand rinse tank and other vital functions. There is a single bank of grease nipple for the entire sprayer, a safety locker, and a convenient steel work platform at the front of the sprayer.
